Extreme Top series (35C)


Fully XT Series offers high capacity in a light, compact package with lowest internal resistance. XT shows the longest cycle life among the similar capcity and weight. You can enjoy flight with strong performances and will be satisfied with the longest cycle life. If you want regular power drain during flight, choose this XT series. You can experience comfortable control in the sky.

FB800XT

Capacity:800mAh
Cell Model:FB723048XT
Max Charge Current(2C):1.6A
Max Continuous Dis.(35C):28A

Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)


 FB800XT-1S

3.7V / 1Cell

7.2x30x48

22.0

  FB800XT-2S-WB

7.4V / 2Cell

15x31x52

50.0

 FB800XT-3S-WB

11.1V / 3Cell

22.5x31x52

75.0

FB1200XT

Capacity:1200mAh
Cell Model:FB803060XT
Max Charge Current(2C):2.4A

Max Continuous Dis.(35C):42A

Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)


 FB1200XT-1S

3.7V / 1Cell

8.0x30x60

34.0

  FB1200XT-2S-WB

7.4V / 2Cell

17.0x31x64

78.0

 FB1200XT-3S-WB

11.1V / 3Cell

25x31x64

115.0

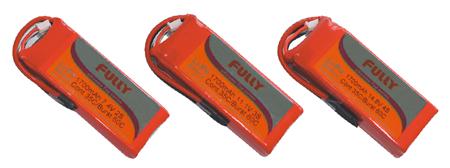

FB1700XT

Capacity:1700mAh
Cell Model:FB753480XT
Max Charge Current(2C):3.4A
Max Continuous Dis.(35C):59.5A

Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)


 FB1700XT-1S

3.7V / 1Cell

7.5x34x80

44.7

 FB1700XT-2S-WB

7.4V / 2Cell

16x31x84

108.0

 FB1700XT-3S-WB

11.1V / 3Cell

  23.5x31x84

155.0

 FB1700XT-4S-WB

14.8V / 4Cell

31x31x84

196.9

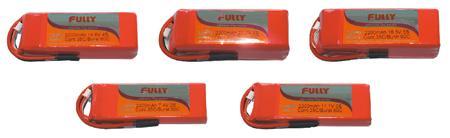

FB2200XT

Capacity:2200mAh
Cell Model:FB843496XT
Max Charge Current(2C):4.4A
Max Continuous Dis.(35C):77.0A

Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)


 FB2200XT-1S

3.7V / 1Cell

8.4x34x96

59.0

  FB2200XT-2S-WB

7.4V / 2Cell

17.8x35x102

132.6

 FB2200XT-3S-WB

11.1V / 3Cell

26.2x35x102

193.0

 FB2200XT-4S-WB

14.8V / 4Cell

34.6x35x102

249.5

 FB2200XT-5S-WB

18.5V / 5Cell

43x35x102

308.8

 FB2200XT-6S-WB

22.2V / 6Cell

51x35x102

370.0

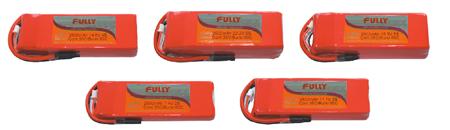

FB2600XT

Capacity:2600mAh
Cell Model:FB7538110XT
Max Charge Current(2C):5.2A
Max Continuous Dis.(35C):91A

Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)


 FB2600XT-1S

3.7V / 1Cell

7.5x38x110

70.0

  FB2600XT-2S-WB

7.4V / 2Cell

16x39x116

152.0

 FB2600XT-3S-WB

11.1V / 3Cell

23.5x39x116

220.5

 FB2600XT-4S-WB

14.8V / 4Cell

31.5x39x116

290.7

 FB2600XT-5S-WB

18.5V / 5Cell

39x39x116

362.5

 FB2600XT-6S-WB

22.2V / 6Cell

47x39x116

435.0

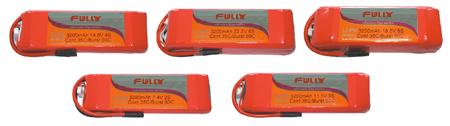

FB3200XT

Capacity:3200mAh
Cell Model:FB7244135XT
Max Charge Current(2C):6.4A

Max Continuous Dis.(35C):112A

Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)


 FB3200XT-1S

3.7V / 1Cell

7.2x44x135

84.0

 FB3200XT-2S-WB

7.4V / 2Cell

15.5x46x143

 196.3

 FB3200XT-3S-WB

11.1V / 3Cell

  23x49x143

 292.6

 FB3200XT-4S-WB

14.8V / 4Cell

30x46x143

374.0

 FB3200XT-5S-WB

18.5V / 5Cell

37.5x49x143

463.0

 FB3200XT-6S-WB

22.2V / 6Cell

44.5x46x143

536.5

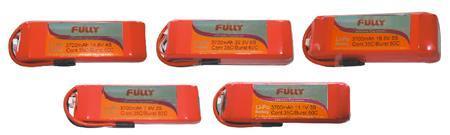

FB3700XT

Capacity:3700mAh
Cell Model:FB8444135XT
Max Charge Current(2C):7.4A

Max Continuous Dis.(35C):129.5A

Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)


 FB3700XT-1S

3.7V / 1Cell

8.4x44x135

93.0

 FB3700XT-2S-WB

7.4V / 2Cell

 18x46x143

215.0

 FB3700XT-3S-WB

11.1V / 3Cell

  26.5x49x143

 337.5

 FB3700XT-4S-WB

14.8V / 4Cell

35x46x143

450.0

 FB3700XT-5S-WB

18.5V / 5Cell

43.5x49x143

560.0

 FB3700XT-6S-WB

22.2V / 6Cell

51x46x143

652.0

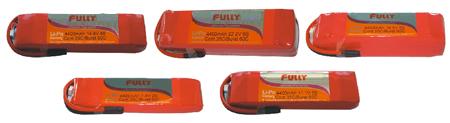

FB4400XT

Capacity:4400mAh
Cell Model:FB8544152XT
Max Charge Current(2C):8.8A

Max Continuous Dis.(35C):154A

Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)


 FB4400XT-1S

3.7V / 1Cell

8.5x44x152

116.3

 FB4400XT-2S-WB

7.4V / 2Cell

 18X46X160

269.3

 FB4400XT-3S-WB

11.1V / 3Cell

 26.5x49x160

384.2

 FB4400XT-4S-WB

14.8V / 4Cell

35X46X160

489.5

 FB4400XT-5S-WB

18.5V / 5Cell

43.5X49X160

618.6

 FB4400XT-6S-WB

22.2V / 6Cell

52X46X160

736

FB5000XT

Capacity:5000mAh
Cell Model:FB9044165XT
Max Charge Current(2C):10A

Max Continuous Dis.(35C):175A

Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)


 FB5000XT-1S

3.7V / 1Cell

9x44x152

129.5

 FB5000XT-2S-WB

7.4V / 2Cell

18.5x46x173

295

 FB5000XT-3S-WB

11.1V / 3Cell

 28x49x173

423.5

 FB5000XT-4S-WB

14.8V / 4Cell

37x46x173

542.5

 FB5000XT-5S-WB

18.5V / 5Cell

46x49x173

684.5

 FB5000XT-6S-WB

22.2V / 6Cell

55.5x46x173

792
