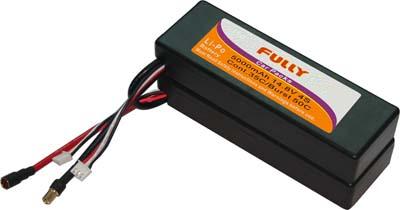

Racing Car Battery Packs



FB5000CT 14.8V

Capacity:5000mAh
Rectangular shape with leadout wires
Max Charge Current(2C):10.0A
Max Continuous Dis.(35C):175.0A
Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)

 FB5000CT-4S-WB

14.8V / 4Cell

48x47x139
584

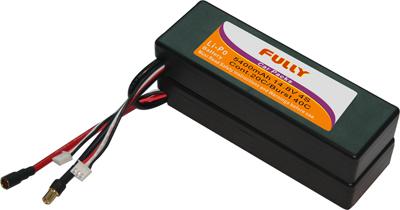

FB5400CH 14.8V


Capacity:5400mAh
Rectangular shape with leadout wires
Max Charge Current(2C):10.8A
Max Continuous Dis.(20C):108.0A
Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)

 FB5400CH-4S-WB

14.8V / 4Cell

48x47x139
580

FB2700CL 7.4V


Capacity:2700mAh Round corner shape with leadout wires
Max Charge Current(2C):5.4A

 Max Continuous Dis.(16C):43.2A
Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)

 FB2700CL-2S-WB

7.4V / 2Cell

22.5x47x139
185
Note: the thickness of the round corner shape car pack does not include the "bumps"

FB2700CL 11.1V


Capacity:2700mAh Round corner shape with leadout wires
Max Charge Current(2C):5.4A

 Max Continuous Dis.(16C):43.2A
Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)
11.1V / 3Cell

22.5x47x139
217.7
 Note: the thickness of the round corner shape car pack does not include the "bumps"

FB3400CX 7.4V


Capacity:3400mAh
Round corner shape with leadout wires
Max Charge Current(2C):6.8A
Max Continuous Dis.(25C):85.0A
Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)

 FB3400CX-2S-WB

7.4V / 2Cell

22.5x47x139
215.8
Note: the thickness of the round corner shape car pack does not include the "bumps"

FB3400CX 11.1V


Capacity:3400mAh
Rectangular shape with leadout wires
Max Charge Current(2C):6.8A
Max Continuous Dis.(25C):85A
Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)

 FB3400CX-3S-WB

11.1V / 3Cell

23.5x47x139
284.55

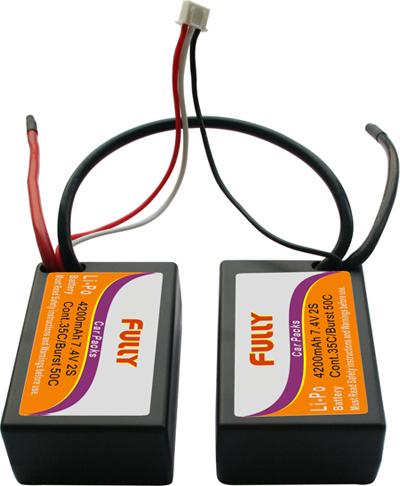

FB4200CT 7.4V Saddle Pack


Capacity:4200mAh
Saddle Pack with leadout wires
Max Charge Current(2C):8.4A
Max Continuous Dis.(35C):147.0A
Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)

 FB4200CT-2S3P-WB

7.4V / 6Cell

(23.5x47x69)x2
247.5

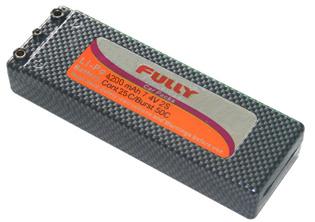

FB4200CX 7.4V


Capacity:4200mAh
Rectangular shape with leadout wires
Max Charge Current(2C):8.4A
Max Continuous Dis.(25C):105.0A
Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)

 FB4200CT-2S-WB

7.4V / 2Cell

23.5x47x139
241.6

FB5000CT 7.4V


Capacity:5000mAh
Rectangular shape with leadout wires
Max Charge Current(2C):10.0A
Max Continuous Dis.(35C):175.0A
Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)

 FB5000CT-2S-WB

7.4V / 2Cell

23.5x47x139
288.4

FB5100CT 7.4V Saddle Pack


Capacity:5100mAh
Saddle Pack with leadout wires
Max Charge Current(2C):10.2A
Max Continuous Dis.(35C):178.5A
Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)

 FB5100CT-2S3P-WB

7.4V / 6Cell

(28x47x69)x2
338.0

FB5400CH 7.4V


Capacity:5400mAh
Rectangular shape with leadout wires
Max Charge Current(2C):10.8A
Max Continuous Dis.(20C):108.0A
Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)

 FB5400CH-2S-WB

7.4V / 2Cell

23.5x47x139
290.0

FB1350CH 11.1V


Capacity:1350mAh
Rectangular shape with leadout wires
Max Charge Current(2C):2.7A
Max Continuous Dis.(20C):27A
Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)

 FB1350CH-3S-WB

11.1V / 3Cell

18x31x98
114.1

FB1800CH 7.4V


Capacity:1800mAh
Rectangular shape with leadout wires
Max Charge Current(2C):3.6A
Max Continuous Dis.(20C):36A
Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)

 FB1800CH-4S-WB

7.4V / 2Cell

17x31x98
100.4

FB1800CX 7.4V


Capacity:1800mAh
Rectangular shape with leadout wires
Max Charge Current(2C):3.6A
Max Continuous Dis.(30C):54A
Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)

 FB1800CX-2S-WB

7.4V / 2Cell

19x33.5x87
104.95

111
