Extreme Light Series (15C)


Fully XL Series offers high capacity in a light, compact package with lowest internalresistance. XL shows the longest cycle life among the similar capcity and weight. You can enjoy flight with strong performances and will be satisfied with the longest cycle life. If you want regular power drain during flight, choose this XL series. You can experience comfortable control in the sky.

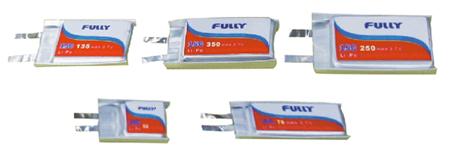

FB10~350XL(Toys)


Capacity:10mAh~350mAh
Max Charge Rate:2C

Max Continuous Dis.Rate:15C

Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)


 FB10XL-1S

3.7V / 1Cell

2.0x10x17

0.6

FB20XL-1S

3.7V / 1Cell

3.2x10x17

0.9

FB30XL-1S

3.7V / 1Cell

3.8x10x17

1.1

3.7V / 1Cell

5.0x14x17
1.5

3.7V / 1Cell

6.0x14x17
1.9

3.7V / 1Cell

6.5x14x17
2.0

3.7V / 1Cell

4.0x15x28
2.2
FB80XL-1S

3.7V / 1Cell

4.2x10x30
2.5

3.7V / 1Cell

4.0x15x28
2.7

3.7V / 1Cell

4.3x15x28
3.0

3.7V / 1Cell

4.5x20x26
 3.5

3.7V / 1Cell

3.8x20x30
3.7

3.7V / 1Cell

4.2X20X30
4.2

3.7V / 1Cell

5.5x20x30
5.1

3.7V / 1Cell

5.0x20x36
6.3
FB300XL-1S

3.7V / 1Cell

5.5x20x36
 7.6

3.7V / 1Cell

6.5x20x36
9.0
FB270XL-1S

3.7V / 1Cell

2.7x30x48
7.0

FB600XL

Capacity:600mAh
Cell Model:FB503048XL
Max Charge Rate(2C):1.2A

Max Continuous Dis.Rate(15C):9.0V

Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)


 FB600XL-1S

3.7V / 1Cell

5.0x30x48

16.0

 FB600XL-2S

7.4V / 2Cell

11x31x52

37.5

FB800XL
Capacity:800mAh
Cell Model:FB703048XL
Max Charge Rate(2C):1.6A

Max Continuous Dis.Rate(15C):12.0A

Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)


 FB800XL-1S

3.7V / 1Cell

7.0x30x48

19.5

 FB800XL-2S

7.4V / 2Cell

15x31x52

47.5

FB800XL-3S
11.1V/3Cell
22x31x52
70.5

FB850XL

Capacity:850mAh
Cell Model:FB483462XL
Max Charge Rate(2C):1.7A

Max Continuous Dis.Rate(15C):12.8A

Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)


 FB850XL-1S

3.7V / 1Cell

4.8x34x62

21.0

 FB850XL-2S

7.4V / 2Cell

10.5x35x66

51.0

FB850XL-3S
11.1V/3Cell
15.5x35x66
73.0

FB1000XL

Capacity:1000mAh
Cell Model:FB503462XL
Max Charge Rate(2C):2A

Max Continuous Dis.Rate(15C):15.0A

Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)


 FB1000XL-1S

3.7V / 1Cell

5.0x34x62

23.0

 FB1000XL-2S

7.4V / 2Cell

11x35x66

49.5

 FB1000XL-3S
11.1V/3Cell
16x35x66
70.8
