High Power Series (20C)


Fully HP Series offers high capacity in a light, compact package with lowest internalresistance. HP shows the longest cycle life among the similar capcity and weight. You can enjoy flight with strong performances and will be satisfied with the longest cycle life. If you want regular power drain during flight, choose this HP series. You can experience comfortable control in the sky.

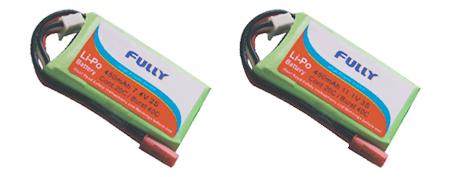

FB450HP



Capacity:450mAh
Cell Model:FB383048HP
Max Charge Current(2C):0.9A
Max Continuous Dis.(20C):9.0A

Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)


 FB450HP-1S

3.7V / 1Cell

3.8x30x48

11.6

 FB450HP-2S-JSB

7.4V / 2Cell

8.5x31x52

29.5

 FB450HP-3S-JSB

11.1V / 3Cell

 13.5x31x52

41.5

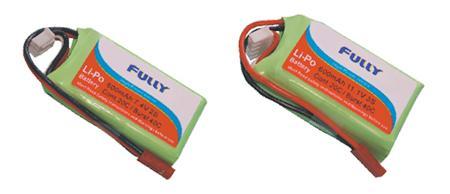

FB600HP


Capacity:600mAh
Cell Model:FB503048HP
Max Charge Current(2C):1.2A

Max Continuous Dis.(20C):12.0A

Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)


 FB600HP-1S

3.7V / 1Cell

5.0x30x48

16.2

 FB600HP-2S-JSB

7.4V / 2Cell

11x31x52

38.5

 FB600HP-3S-JSB

11.1V / 3Cell

 16x31x52

55.7

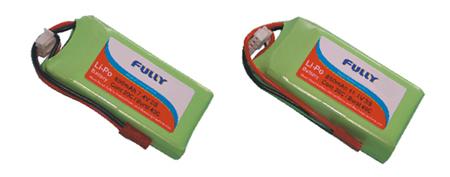

FB850HP


Capacity:850mAh
Cell Model:FB463462HP
Max Charge Current(2C):1.7A

Max Continuous Dis.(20C):17.0A
Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)


 FB850HP-1S

3.7V / 1Cell

4.6x34x62

21.5

  FB850HP-2S-WB

7.4V / 2Cell

10x35x66

49.2

 FB850HP-3S-WB

11.1V / 3Cell

14.5x35x66

70.5


FB860HP


Capacity:860mAh
Cell Model:FB622566HP
Max Charge Current(2C):1.72A

Max Continuous Dis.(20C):17.2A
Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)


 FB860HP-1S

3.7V / 1Cell

6.2x25x66

21.0

  FB850HP-2S-WB

7.4V / 2Cell

14x26x81

47.5

 FB850HP-3S-WB

11.1V / 3Cell

20x26x81

68.5

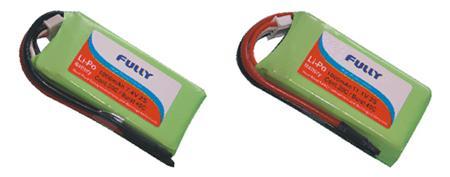

FB1000HP


Capacity:1000mAh
Cell Model:FB503462HP
Max Charge Current(2C):2.0A

Max Continuous Dis.(20C):20.0A

Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)


 FB1000HP-1S

3.7V / 1Cell

5.0x34x62

24.6

  FB1000HP-2S-WB

7.4V / 2Cell

11x35x67

56.5

 FB1000HP-3S-WB

11.1V / 3Cell

16x35x67

83.5

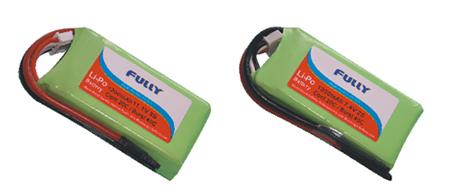

FB1200HP


Capacity:1200mAh
Cell Model:FB723060HP
Max Charge Current(2C):2.4A

Max Continuous Dis.(20C):24.0A
Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)


 FB1200HP-1S

3.7V / 1Cell

7.2x30x60

28.0

  FB1200HP-2S-WB

7.4V / 2Cell

15.5x31x64

63.5

 FB1200HP-3S-WB

11.1V / 3Cell

22.5x31x64

92.5

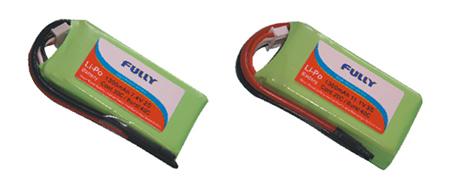

FB1300HP


Capacity:1300mAh
Cell Model:FB683462HP
Max Charge Current(2C):2.6A

Max Continuous Dis.(20C):26.0A

Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)


 FB1300HP-1S

3.7V / 1Cell

6.8x34x62

30.5

  FB1300HP-2S-WB

7.4V / 2Cell

14.5x35x66

70.5

 FB1300HP-3S-WB

11.1V / 3Cell

 21x31x66

107.0

FB1500HP


Capacity:1500mAh
Cell Model:FB583480HP
Max Charge Current(2C):3.0A

Max Continuous Dis.(20C):30.0A
Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)


 FB1500HP-1S

3.7V / 1Cell

58x34x80

35.0

  FB1500HP-2S-WB

7.4V / 2Cell

12.5x35x86

81.3

 FB1500HP-3S-WB

11.1V / 3Cell

18.5x35x86

120.0

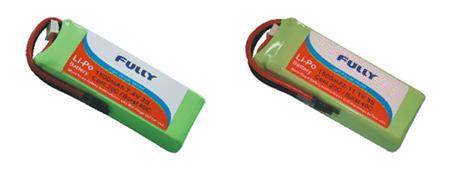

FB1600HP

Capacity:1600mAh
Cell Model:FB603480HP
Max Charge Current(2C):3.2A

Max Continuous Dis.(20C):32.0A
Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)


 FB1600HP-1S

3.7V / 1Cell

6.0x34x80

35.0

  FB1600HP-2S-WB

7.4V / 2Cell

13x35x84

84.4

 FB1600HP-3S-WB

11.1V / 3Cell

20x35x84

124.6

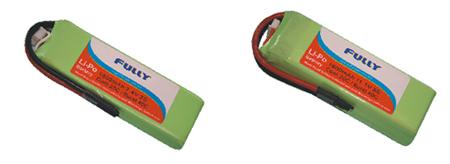

FB1800HP

Capacity:1800mAh
Cell Model:FB583496HP
Max Charge Current(2C):3.6A

Max Continuous Dis.(20C):36.0A

Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)


 FB1800HP-1S

3.7V / 1Cell

5.8x34x96

44.0

  FB1800HP-2S-WB

7.4V / 2Cell

13.5x35x104

98.0

 FB1800HP-3S-WB

11.1V / 3Cell

19.5x35x104

145.5

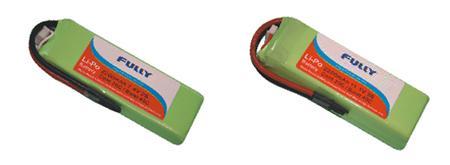

FB2200HP

Capacity:2200mAh
Cell Model:FB703496HP
Max Charge Current(2C):4.4A

Max Continuous Dis.(20C):44.0A
Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)


 FB2200HP-1S

3.7V / 1Cell

7.0x34x96

51.9

  FB2200HP-2S-WB

7.4V / 2Cell

15x35x104

113.0

 FB2200HP-3S-WB

11.1V / 3Cell

22.0x35x102

166.5

FB3200HP

Capacity:3200mAh
Cell Model:FB6043135HP
Max Charge Current(2C):6.4A

Max Continuous Dis.(20C):64.0A
Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)


 FB3200HP-1S

3.7V / 1Cell

6.0x43x135

75.3

  FB3200HP-2S-WB

7.4V / 2Cell

13x45x143

171.0

 FB3200HP-3S-WB

11.1V / 3Cell

20x45x143

262.0

FB4000HP
Capacity:4000mAh
Cell Model:FB7843135HP
Max Charge Current(2C):8.0A

Max Continuous Dis.(20C):80.0A

Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)


 FB3200HP-1S

3.7V / 1Cell

7.8x43x135

91.2

  FB3200HP-2S-WB

7.4V / 2Cell

16.5x45x143

202.5

 FB3200HP-3S-WB

11.1V / 3Cell

26x45x143

309.5

FB6000HP
Capacity:6000mAh
Cell Model:FB7246188HP
Max Charge Current(2C):12.0A

Max Continuous Dis.(20C):120A

Part Number
(Battery Pack)
Voltage/Cells
Dimensions
HxWxL(mm)
Approx.Weight
(g)


 FB6000HP-1S

3.7V / 1Cell

7.2x46x188

130.0

  FB6000HP-2S-WB

7.4V / 2Cell

14x48x196

295.0

 FB6000HP-3S-WB

11.1V / 3Cell

22x52x196

431.0

FB6000HP-4S-WB
14.8V/ 4Cell
 31x48x196
557.0
FB6000HP-5S-WB
 18.5V/ 5Cell
 37x52x196
 698.5
FB6000HP-6S-WB
 22.0V/ 6Cell
 44.5x48x196
 832.0
