Extreme Power Series (25C)

Fully XP Series offers high capacity in a light, compact package with lowest internal resistance. XP shows the longest cycle life among the similar capcity and weight. You can enjoy flight with strong performances and will be satisfied with the longest cycle life. If you want regular power drain during flight, choose this XP series. You can experience comfortable control in the sky.

FB450XP
FB600XP
FB850XP
FB880XP
FB1000XP
FB1300XP
FB1800XP
FB2200XP
FB2500XP
FB3300XP
FB3700XP
FB4500XP
FB5000XP
FB5300XP

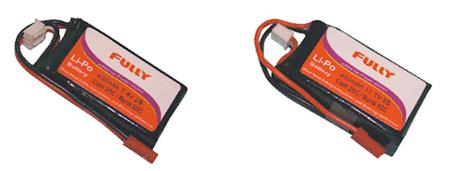

FB450XP

Capacity:450mAh

Cell Model:FB403048XP

Max Charge Current(2C):0.9A

Max Continuous Dis.(25C):11.3A

Part Number (Battery Pack)	Voltage/Cells	Dimensions HxWxL(mm)	Approx.Weight (g)
FB450XP-1S	3.7V / 1Cell	4.0x30x48	12.5
FB450XP-2S-JSB	7.4V / 2Cell	9x31x53	29.5
FB450XP-3S-JSB	11.1V / 3Cell	13.5x31x52	42.6

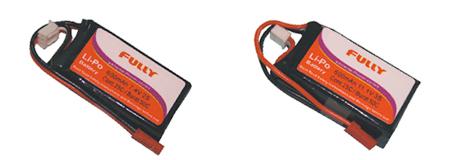

FB600XP

Capacity:600mAh	Cell Model:FB533048XP
Max Charge Current(2C):1.2A	Max Continuous Dis.(25C):15.0A

Part Number (Battery Pack)	Voltage/Cells	Dimensions HxWxL(mm)	Approx.Weight (g)
FB600XP-1S	3.7V / 1Cell	5.3x30x48	16.7
FB600XP-2S-JSB	7.4V / 2Cell	12x31x52	38.0
FB600XP-3S-JSB	11.1V / 3Cell	16.5x31x52	55.9

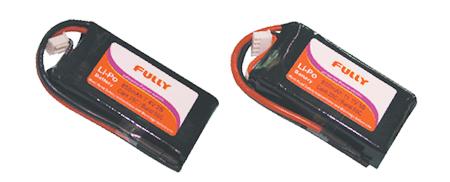

FB850XP

Capacity:850mAh	Cell Model:FB483462XP
Max Charge Current(2C):1.7A	Max Continuous Dis.(25C):21.3A

Part Number (Battery Pack)	Voltage/Cells	Dimensions HxWxL(mm)	Approx.Weight (g)
FB850XP-1S	3.7V / 1Cell	4.8x34x62	23.5
FB850XP-2S-WB	7.4V / 2Cell	11.0x31x66	55.5
FB850XP-3S-WB	11.1v/ 3Cell	16.0x31x66	75.5

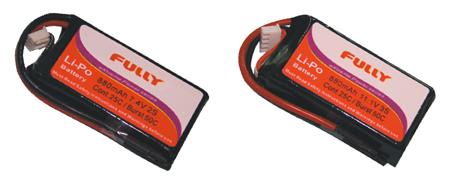

FB880XP

Capacity:880mAh	Cell Model:FB763048XP
Max Charge Current(2C):1.76A	Max Continuous Dis.(25C):22.0A

Part Number (Battery Pack)	Voltage/Cells	Dimensions HxWxL(mm)	Approx.Weight (g)
FB880XP-1S	3.7V / 1Cell	7.6x30x48	22.6
FB880XP-2S-WB	7.4V / 2Cell	16.5x31x52	52.0
FB880XP-3S-WB	11.1V / 3Cell	24.5x31x52	75.6

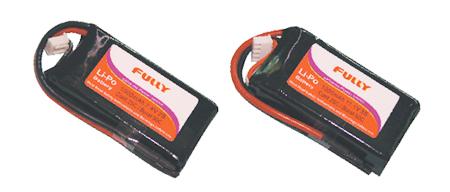

FB1000XP

Capacity:1000mAh	Cell Model:FB583462XP
Max Charge Current(2C):2.0A	Max Continuous Dis.(25C):25.0A

Part Number (Battery Pack)	Voltage/Cells	Dimensions HxWxL(mm)	Approx.Weight (g)
FB1000XP-1S	3.7V / 1Cell	5.8x34x62	27.0
FB1000XP-2S-WB	7.4V / 2Cell	12.5x35x66	60.0
FB1000XP-3S-WB	11.1V /3Cell	18.5x35x66	87.0

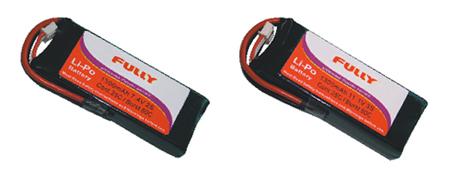

FB1300XP

Capacity:1300mAh

Cell Model:FB553480XP

Max Charge Current(2C):2.6A

Max Continuous Dis.(25C):32.5A

Part Number (Battery Pack)	Voltage/Cells	Dimensions HxWxL(mm)	Approx.Weight (g)
FB1300XP-1S	3.7V / 1Cell	5.5x34x80	33.5
FB1300XP-2S	7.4V/2Cell	12.0x35x84	75.9
FB1300XP-3S	11.1V/3Cell	17.5x35x84	108.8

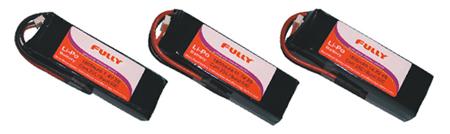

FB1800XP

Capacity:1800mAh	Cell Model:FB633496XP
Max Charge Current(2C):3.6A	Max Continuous Dis.(25C):45.0A

Part Number (Battery Pack)	Voltage/Cells	Dimensions HxWxL(mm)	Approx.Weight (g)
FB1800XP-1S	3.7V / 1Cell	6.3x34x96	44.5
FB1800XP-2S-WB	7.4V / 2Cell	13.5x35x102	106.3
FB1800XP-3S-WB	11.1V/ 3Cell	19.5x35x102	150.8
FB1800XP-4S-WB	14.8V/ 4Cell	26x35x102	197.0

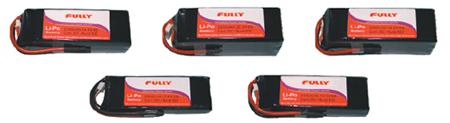

FB2200XP

Capacity:2200mAh

Cell Model:FB783496XP

Max Charge Current(2C):4.4A

Max Continuous Dis.(25C):55.0A

Part Number (Battery Pack)	Voltage/Cells	Dimensions HxWxL(mm)	Approx.Weight (g)
FB2200XP-1S	3.7V / 1Cell	7.8x34x96	56.0
FB2200XP-2S-WB	7.4V / 2Cell	16.5x35x102	123.5
FB2200XP-3S-WB	11.1V / 3Cell	24x35x102	178.0
FB2200XP-4S-WB	14.8V / 4Cell	32x35x102	233.0
FB2200XP-5S-WB	18.5V / 5Cell	40x35x102	290.0
FB2200XP-6S-WB	22.2V / 6Cell	47.5x35x102	341.1

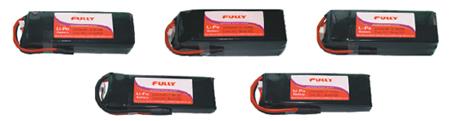

FB2500XP

Capacity:2500mAh

Cell Model:FB6838110XP

Max Charge Current(2C):5.0A

Max Continuous Dis.(25C):62.5A

Part Number (Battery Pack)	Voltage/Cells	Dimensions HxWxL(mm)	Approx.Weight (g)
FB2500XP-1S	3.7V / 1Cell	6.8x38x110	64.6
FB2500XP-2S- WB	7.4V / 2Cell	14.5x39x116	136.6
FB2500XP-3S-WB	11.1V / 3Cell	21.5x39x116	202.5
FB2500XP-4S-WB	14.8V / 4Cell	28.5x39x116	262.5
FB2500XP-5S-WB	18.5V / 5Cell	35.5x39x116	332.0
FB2500XP-6S-WB	22.2V / 6Cell	42.5x39x116	389.6

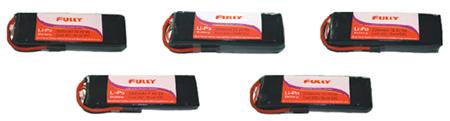

FB3300XP

Capacity:3300mAh

Cell Model:FB6844135XP

Max Charge Current(2C):6.6A

Max Continuous Dis.(25C):82.5A

Part Number (Battery Pack)	Voltage/Cells	Dimensions HxWxL(mm)	Approx.Weight (g)
FB3300XP-1S	3.7V / 1Cell	6.8x44x135	83.5
FB3300XP-2S- WB	7.4V / 2Cell	14.5x46x143	186.7
FB3300XP-3S-WB	11.1V / 3Cell	21.5x49x143	286.5
FB3300XP-4S-WB	14.8V / 4Cell	28.5x46x143	362
FB3300XP-5S-WB	18.5V / 5Cell	35.5x48x143	449.2
FB3300XP-6S-WB	22.2V / 6Cell	42.5x46x143	526.0

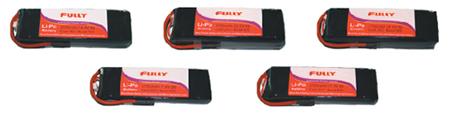

FB3700XP

Capacity:3700mAh

Cell Model:FB7544135XP

Max Charge Current(2C):7.4A

Max Continuous Dis.(25C):92.5A

Part Number
(Battery Pack)

Voltage/Cells

Dimensions
HxWxL(mm)

Approx.Weight
(g)

FB3700XP-1S

3.7V / 1Cell

7.5x44x135

93.0

FB3700XP-2S- WB

7.4V / 2Cell

16x46x143

197.3

FB3700XP-3S-WB

11.1V / 3Cell

23.5x49x143

316.0

FB3700XP-4S-WB

14.8V / 4Cell

31.0x46x143

400.5

FB3700XP-5S-WB

18.5V / 5Cell

38.5x48x143

492

FB3700XP-6S-WB

22.2V / 6Cell

46x46x143

582.5

FB4500XP

Capacity:4500mAh

Cell Model:FB8244152XP

Max Charge Current(2C):9.0A

Max Continuous Dis.(25C):112.5A

Part Number
(Battery Pack)

Voltage/Cells

Dimensions
HxWxL(mm)

Approx.Weight
(g)

FB4500XP-1S

3.7V / 1Cell

8.2x44x152

115.0

FB4500XP-2S- WB

7.4V / 2Cell

17.5x46x160

250.0

FB4500XP-3S-WB

11.1V / 3Cell

25.5x49x160

366.8

FB4500XP-4S-WB

14.8V / 4Cell

34x46x160

478.5

FB4500XP-5S-WB

18.5V / 5Cell

42x49x160

569.8

FB4500XP-6S-WB

22.2V / 6Cell

50.5x46x160

698.5

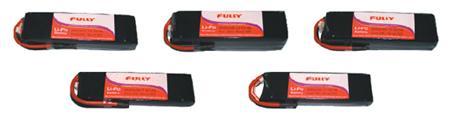

FB5000XP

Capacity:5000mAh

Cell Model:FB9244152XP

Max Charge Current(2C):10.0A

Max Continuous Dis.(25C):125A

Part Number
(Battery Pack)

Voltage/Cells

Dimensions
HxWxL(mm)

Approx.Weight
(g)

FB5000XP-1S

3.7V / 1Cell

9.2x44x152

123.0

FB5000XP-2S- WB

7.4V / 2Cell

19.5x46x160

278.0

FB5000XP-3S-WB

11.1V / 3Cell

27.5x49x160

414.0

FB5000XP-4S-WB

14.8V / 4Cell

34x46x160

527.8

FB5000XP-5S-WB

18.5V / 5Cell

44x49x160

663.5

FB5000XP-6S-WB

22.2V / 6Cell

52.5x46x160

769.5

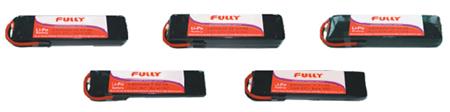

FB5300XP

Capacity:5300mAh

Cell Model:FB7046188XP

Max Charge Current(2C):10.6A

Max Continuous Dis.(25C):132.5A

Part Number (Battery Pack)	Voltage/Cells	Dimensions HxWxL(mm)	Approx.Weight (g)
FB5300XP-1S	3.7V / 1Cell	7.0x46x188	132.3
FB5300XP-2S- WB	7.4V / 2Cell	15.0x48x196	296.5
FB5300XP-3S-WB	11.1V / 3Cell	22x52x196	442.0
FB5300XP-4S-WB	14.8V / 4Cell	29x48x196	565.0
FB5300XP-5S-WB	18.5V / 5Cell	36x52x196	710.0
FB5300XP-6S-WB	22.2V / 6Cell	43x48x196	825.5
